High performance 2-channel digital-to-analog converter

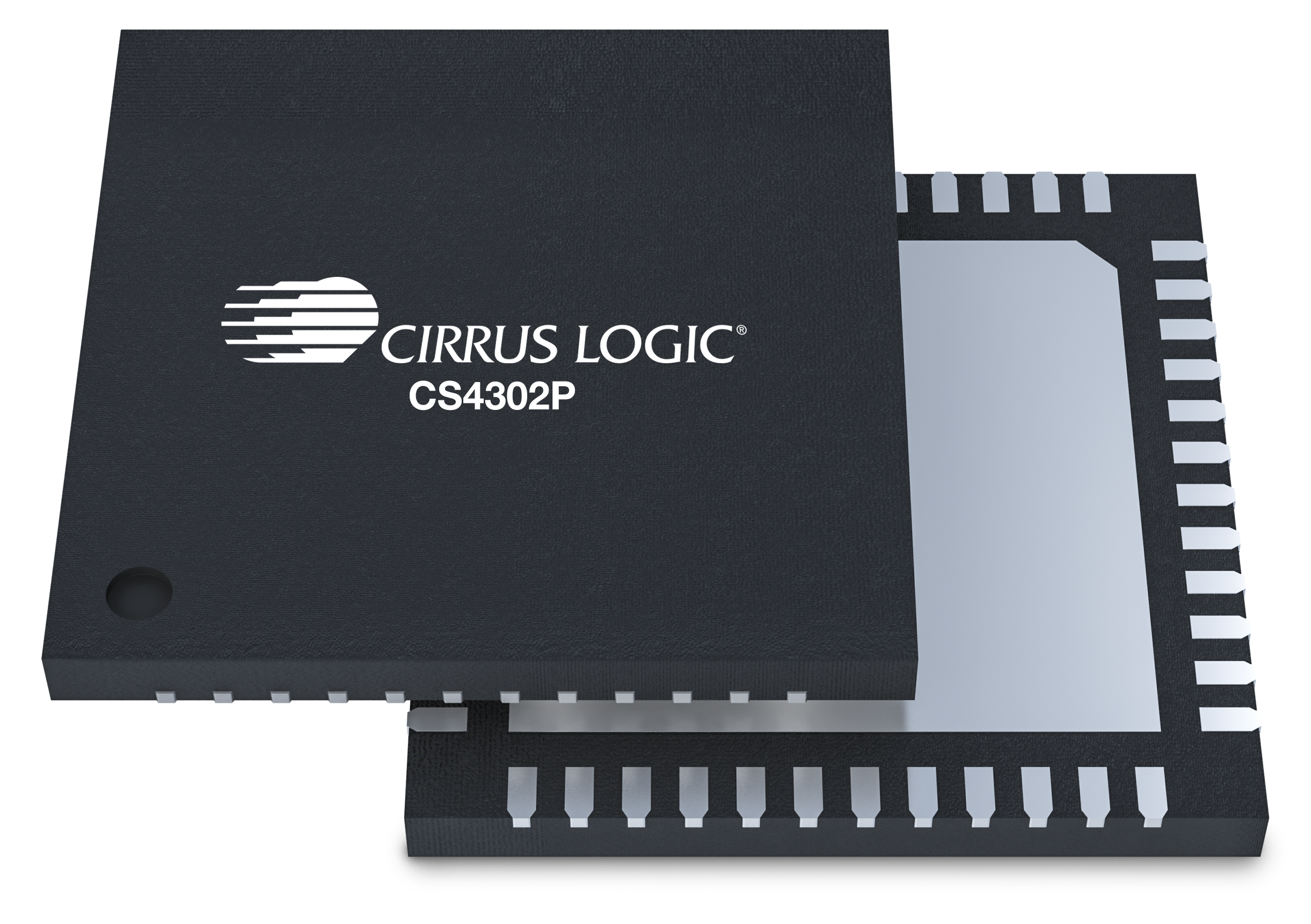

The Cirrus Logic CS4302P is part of a new series of pro audio converters aimed at providing the most transparent audio conversion. This transparency allows manufacturers to customize their end products. The CS4302P is a high-performance, 32-bit resolution 2-channel DACs. The device support differential analog outputs and 32-bit digital input via the audio serial port (ASP) at sample rates up to 768 kHz.The CS4302P uses a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of 129 dB and THD+N below -115 dB.
The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making the devices both flexible and easy to integrate. This makes the CS4302P ideal for digital mixers, USB audio interfaces, home audio and audio video receivers, plus musical instruments such as synthesizers, DJ mixers and amplifiers.
CIRRUS ROCKS® CIRRUS® ENGINEERED TO ROCK® INNOVATION THAT ROCKS®
技术
特性
- High-performance Stereo DAC
- 差分模拟输出
- 高分辨率 32 位数字架构
- 低延迟数字滤波器和数字音量控制
- PLL 支持各种外部系统时钟参考
- 跨多个设备同步操作
- 音频串行端口 (ASP) 采样率高达 768 kHz
- I2S、左对齐和 TDM 数据格式
- DSD up to 512xfs
- 硬件和软件控制模式
- 无需主机处理器即可进行硬件控制
- 集成电路 (I2C) 控制端口频率响应高达 1 MHz
- SPI 控制端口频率响应高达 24 MHz
- 3.3 V 单电源供电
- 支持 1.8 V–3.3 V 数字输入/输出
参数规格
| 声道输出 | 2 |
| 分辨率（位） | 32 |
| 动态范围（dB） | 129 |
| 总谐波失真 (THD) + N (dB) | -115 |
| 采样频率（kHz） | 768 |
| 模拟电源 (V) | 3.3 |
| 数字电源 (V) | 3.3 |
| 逻辑电源 (V) | 1.8-3.3 |
| 输出电平 (Vrms) | 2 |
| 封装 | 48 引脚 QFN |
